130 BBL trailer haulers: make room for the Sidewinder

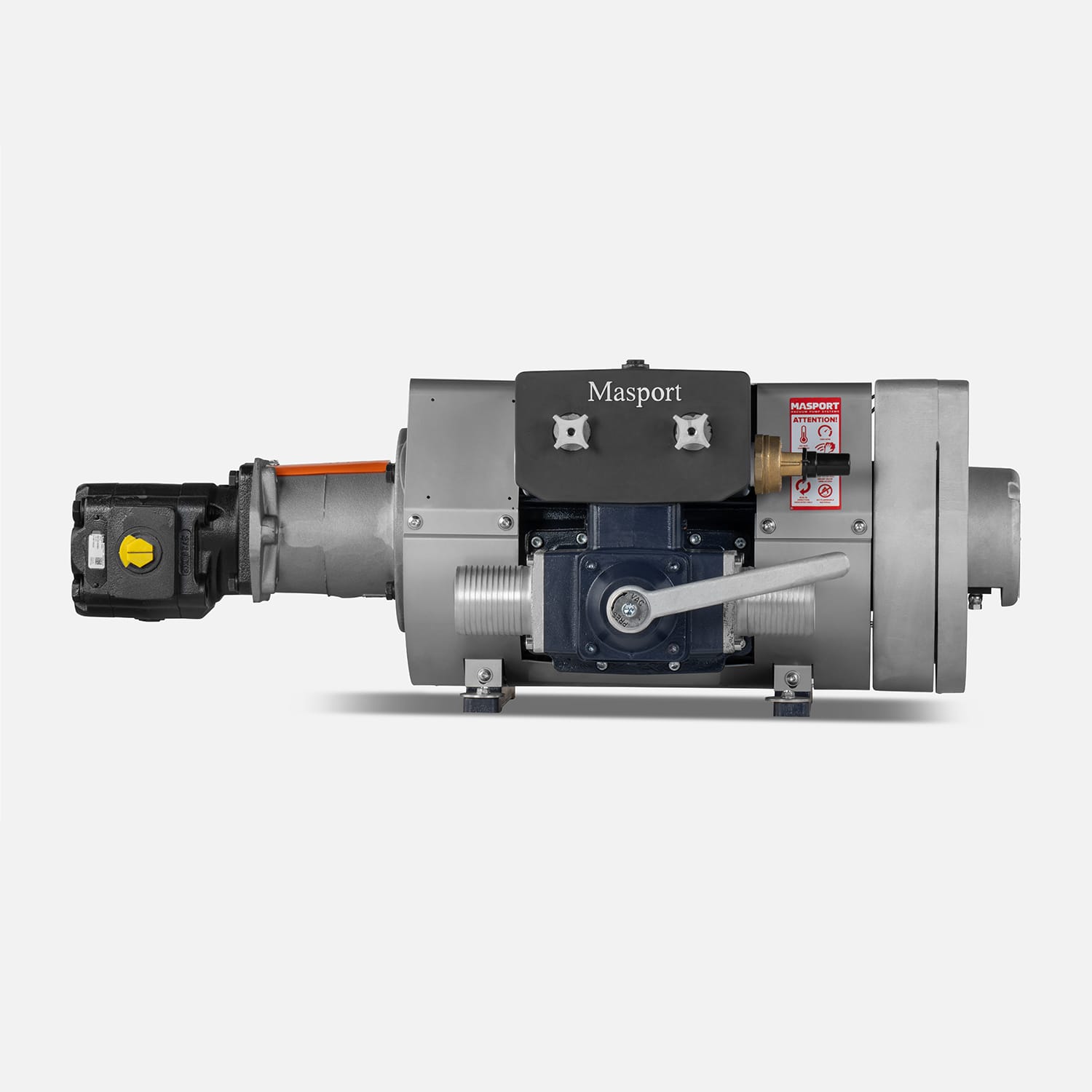

When space and equipment layout matter on a trailer, the pump package needs to work with the available mounting area. Masport’s Sidewinder hose tray system is a hydraulic drive package designed as a hose tray mounting solution.
The system includes a fan-cooled Sidewinder vacuum/pressure pump, a pre-filter with stainless steel inlet filter, a vacuum relief valve, and a pre-installed hydraulic drive kit with a self-aligning adapter.
Check the available space
Masport lists the hose tray system at approximately 42 inches deep, 22.1875 inches wide, and 15.833 inches high. The listed package weight is approximately 630 pounds.
Use those figures as a starting point when checking your trailer. Measure the usable mounting area and consider the surrounding equipment, hose routing, plumbing connections, and access needed for operation and service. The tray and mounting area also need to be suitable for the package’s weight.
A trailer’s available space and mounting arrangement can vary. These dimensions are useful for planning, but they don’t confirm fit on every trailer or hose tray. Check the actual trailer layout and clearances before ordering.
Match the package to the application
The Sidewinder hose tray system is listed at 407 CFM, with a 3-inch hose barb, hydraulic drive, and an optimal tank size range of 2,500 to 6,000 gallons. Confirm that the pump specifications and hydraulic setup are appropriate for your equipment and intended use.
Masport offers this system in several configurations, including plastic tank, steel tank, and combined oil/flush tank options. Confirm the exact part number and configuration you need before placing an order.
Planning a Sidewinder hose tray installation?
The Masport Sidewinder hose tray system is built for a trailer hose tray mounting application, but the final fit depends on the space and equipment on your trailer. Measure the available area and verify clearances before selecting a configuration.
View the Masport Sidewinder hose tray system. If you’re checking fitment, have your trailer details, hose tray measurements, and a photo of the mounting area available so the setup can be reviewed.
