Jurop Juro-Pack Hydraulic Drive Pkg for PN84 R260 RV360 LC420 Vacuum Pumps

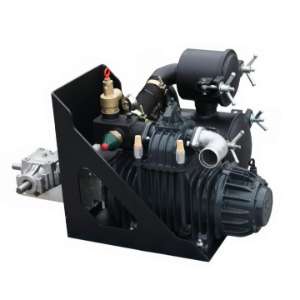

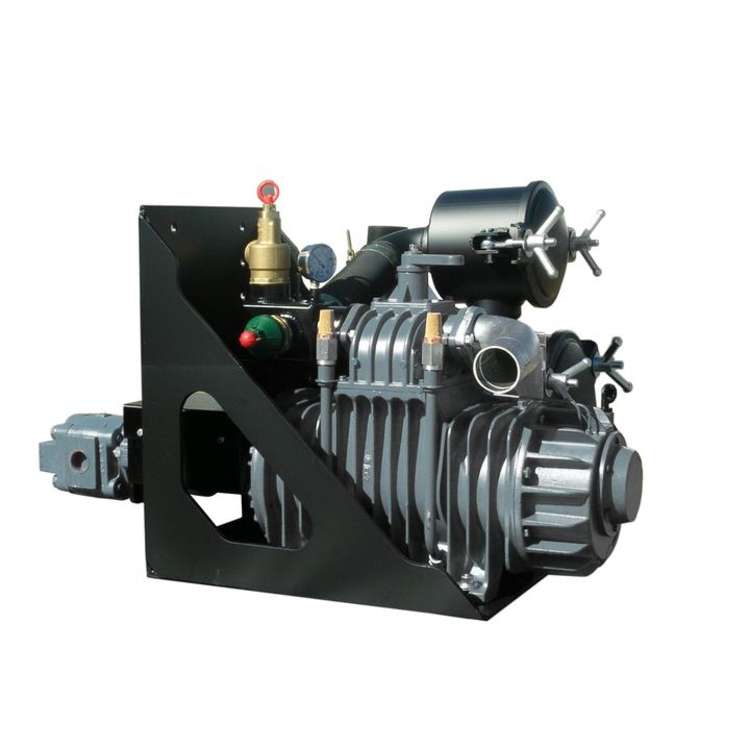

The Jurop Juro-Pack (hydraulic drive) package for the PN84, R260, RV360, LC420, LC580 pumps is a vacuum pump setup that includes the pump, pump stand, final filter, horizontal secondary, hydraulic bracket, hydraulic motor, drive coupling, and pressure vacuum relief tree assembly.  Truck or trailer mounted.

PN84 Pump Specs

• RPM Range: 900-1300
• Max Vacuum: 27.6″ / 92%
• CFM @ Free Air: 317
• CFM @ 18″: 252
• Max Pressure: 21 PSI
• Horsepower: 15
• Noise @ 18″: 81 dB
• Oil Tank Capacity: 2.44 quarts
• Net Weight: 254 lbs
• Recommended Oil: ISO 150
• 1 3/8 inch Smooth Shaft
• Two 3″ Swivel Elbows (must specify when ordering)

R260 Pump Specs

• RPM Range: 900-1200
• Max Vacuum: 27.6” / 92%
• Max Continuous Vacuum: 18” / 60%
• CFM at Free Air: 363
• CFM at 18”: 304
• Max Pressure 25 PSI
• Horsepower: 18
• Noise @ 18”: 84 dB
• Net Weight: 397 lbs
• Oil Tank Cap.: 2.44 qt
• Rec. Oil: ISO 150
• 1 3/8” Smooth Shaft
• Two 3” Swivel Elbows


RV360 Pump Specs

• RPM Range 1100-1300

• Max Vacuum 28” / 92%
• CFM at Free Air 360
• CFM at 18” 332
• Max Intermittent Pressure 30 PSI
• Horsepower 16
• Noise at 18” 76 dB
• Oil Tank Capacity 1 gallon
• Net Weight 430 lbs
• Recommended Oil ISO 150
• 40mm Smooth Shaft

LC420 Pump Specs

• RPM Range: 900-1300
• Max Vacuum: 27.6″ / 92%
• CFM @ Free Air: 230
• CFM @ 18″: 205
• Max Pressure: 21 PSI
• Horsepower: 9
• Noise @ 18″: 77 dB
• Oil Tank Capacity: 2.44 quarts
• Net Weight: 225 lbs
• Recommended Oil: ISO 150
• 1 3/8 inch Smooth Shaft
• Two 2″ or 3″ Swivel Elbows (specify when ordering)

• R Series Tech Sheet
• LC Series Tech Sheet

• RV Series Tech Sheet

• PN Series Tech Sheet

Juro-Pack package includes pump, pump stand, final filter, horizontal secondary, hydraulic bracket, hydraulic motor, drive coupling, pressure vacuum relief tree assembly.
